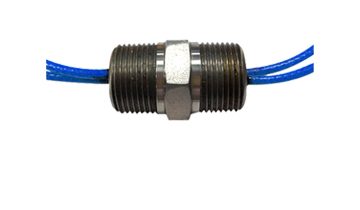

5494 Feedthrough Extension Cables

5494-AA Extension Cables for 10000 and MX Series Probes. Seals cable to 150 PSI (1035 kPa).

All Metrix MX2031 extension cables are part of the 10000 series part number designation for agency approvals.

The 10000 series P/N will appear on the product’s label along with the MX2031 p/n.

e.g. MX2031-AAA-BB-CC = 10200-AAA-BB-CC.

  • Model 5494-01 Single Feedthrough Extension Cable
  • Model 5494-02 Dual Feedthrough Extension Cable



Model Probe Length Cable Length High Pressure Length







=

 System Length



5494-01 Single Feedthrough

or

5494-02 Dual Feedthrough

 0.5m 45= 4.5m



20 = 2.0m Typical

01 = 0.1m Increments

05 = 0.5m Minimum

 5m
1.0m 40= 4.0m 5m
0.5m 85= 8.5m 9m
1.0m 80= 8.0m 9m
