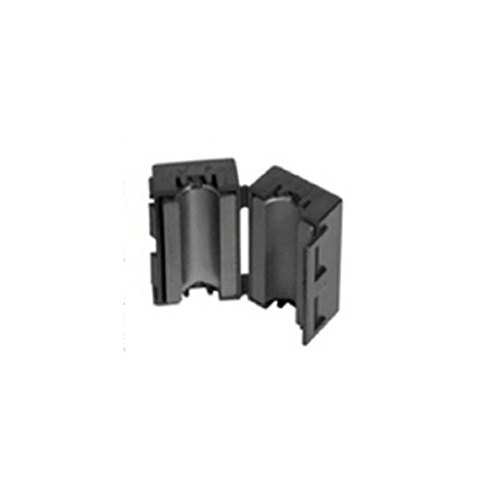

97007-007 Clamshell-type Ferrite Bead

Model: 97007-007
Clamshell-type n Ferrite Bead; used with vibration transmitter cabling for enhanced RFI/EMI protection.  Accepts cable diameters up to 10mm (3/8").

Dimensions:

  • Length: 32.3 mm
  • Width: 22.1 mm
  • Height: 22.1 mm

    Refer to the application note Best Practices for RFI Immunity on Vibration Transmitters (doc 100459) for installation instructions.

    NOTE: Field testing has shown that a barrel-type ferrite bead (p/n 100463) provides good RFI rejection properties; clamshell type bead (p/n 97007-007) should be used only when physical installation particulars preclude the use of a barrel-type bead.
