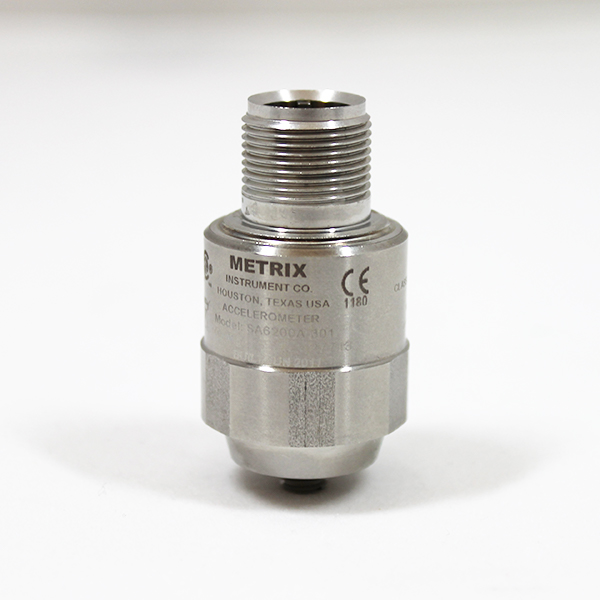

SA6200A API 670 Accelerometer

General purpose accelerometer that meets API 670 requirements. Designed for use on a wide variety of machine types with its broad frequency response of 0.5 to 10 kHz (+/- 3dB), 50g range, and mounted resonance of 13 kHz. A built-in amplifier provides an industry-standard 100mV/g low-impedance, constant-current output that is compatible with vibration monitoring systems, electronic switches, and 4-20mA signal conditioners. The sensor consists of a temperature-stabilized piezo-electric core and an amplifier, packaged together in a 316 stainless steel case that is electrically isolated from the sensing circuit. A choice of mounting studs is available. Consult the product datasheet for available hazardous area approvals.

  SA6200A API 670 Requirement
Case Material 316 SS 316 SS
Freq Response (+/- 3dB) 0.5 Hz - 10 kHz 10 Hz - 10 kHz
Noise Floor 0.003 g rms 0.004 g rms
Mounted Resonance 13 kHz N/A
Hazardous Area Certifcations CSA, ATEX, IECEx N/A


Product Aprox. Weight: 91 g (3.2 oz)
