MX5000 Vibration Monitoring System
A Different Approach to Vibration Monitoring
The Metrix MX5000 Vibration Monitoring System (VMS) is a next-generation monitoring and protection system designed to simplify machinery protection without compromising performance.
Built on a modular, DIN-rail architecture, it delivers API 670–compliant monitoring with flexible scalability up to 24 channels, making it ideal for both new installations and seamless rack replacements. With hazardous area approvals, SIL 2 capability, and easy integration into existing wiring and control systems, the MX5000 provides a practical, cost-effective path to modernizing asset protection. Its modular design allows a user to take advantage of each module’s standalone capacity, with the ability to combine systems with up to 7 modules and 24 vibration channels.

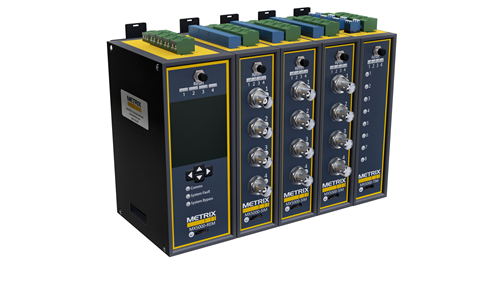

The MX5000 Vibration Monitoring System Shown Includes (Coming Soon):
- One Rack Emulation Module (REM)
- Three Sensor Interface Modules (SIM)
- One Temperature Interface Module (TIM)
MX5000 Features:
- Sized to fit in the void created by removing an older vibration monitoring system rack
- DIN rail mounted to facilitate easy modular construction
- 20-pin connector creates a continuous backplane between modules
- Existing wiring can easily be tied in for sensors, communications, 4-20 recorders and emergency shutdown systems
- Configuring the MX5000 is as easy as connecting your laptop to the USB
- Relay mapping is simple and intuitive, making voting logic easy to understand
- Configuration is password protected
- Configuration display software will be available on the Metrix website
Applications
- Centrifugal Compressors
- Motors & Generators
- Process Pumps
- Centrifuges
- Natural Gas/Diesel Engines
- Gas Turbines
- Other Rotating/Reciprocating Machines
Please refer to the MX5000 Full System Brochure to learn more.
MX5000 Sensor Interface Module
The MX5000-SIM Signal Interface Module (SIM) is a next generation DIN rail mounted Smart Vibration Signal
Conditioner and Monitoring System.
