MX5000 Vibration Monitoring System

A Different Approach to Vibration Monitoring

The Metrix MX5000 Vibration Monitoring System (VMS) is a next-generation monitoring and protection system designed to simplify machinery protection without compromising performance.

Built on a modular, DIN-rail architecture, it delivers API 670–compliant monitoring with flexible scalability up to 24 channels, making it ideal for both new installations and seamless rack replacements. With hazardous area approvals, SIL 2 capability, and easy integration into existing wiring and control systems, the MX5000 provides a practical, cost-effective path to modernizing asset protection. Its modular design allows a user to take advantage of each module’s standalone capacity, with the ability to combine systems with up to 7 modules and 24 vibration channels.

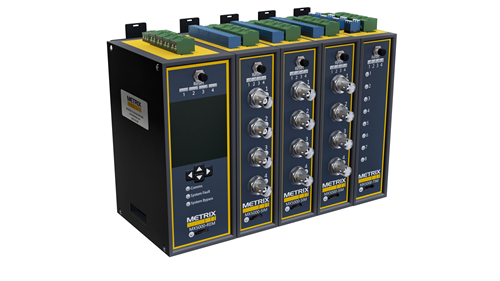

The MX5000 Vibration Monitoring System Shown Includes (Coming Soon):

• One Rack Emulation Module (REM)
• Three Sensor Interface Modules (SIM)
• One Temperature Interface Module (TIM)

MX5000 Features:

• Sized to fit in the void created by removing an older vibration monitoring system rack
• DIN rail mounted to facilitate easy modular construction
• 20-pin connector creates a continuous backplane between modules
• Existing wiring can easily be tied in for sensors, communications, 4-20 recorders and emergency shutdown systems
• Configuring the MX5000 is as easy as connecting your laptop to the USB
• Relay mapping is simple and intuitive, making voting logic easy to understand
• Configuration is password protected
• Configuration display software will be available on the Metrix website

Applications

• Centrifugal Compressors
• Motors & Generators
• Process Pumps
• Centrifuges
• Natural Gas/Diesel Engines
• Gas Turbines
• Other Rotating/Reciprocating Machines

Please refer to the MX5000 Full System Brochure to learn more.

Watch our MX5000 animations to learn more about our innovative new vibration monitoring system.

Download MX5000 Multi-Stage Pump Whitepaper
